C300 positioning for the next generation of high-capacity network convergence xPON access platform for next-generation networks HSI, VoIP, TDM, IPTV, CATV, mobile 2G/3G, WiFi access , such as full-service aggregation and management control, and provides carrier-class reliability, QoS and security protection.
Product Description
ZXA10 C300 configuration:
2 SCXM/SCXN control board; (SCXL For Option)
2 GUFQ board(4SFP Slot), 2 uplink modules on each;
(HUTQ( 10G Uplink)
GUSQ(2SFP Slot & 2RJ 45 GE Ports) Board for Optioin)
2 PRWG power boards; (AC to DC Power Converter have to buy separate)
2 Power cables
1 RJ-45 first turn 9-pin RS-232 female network cable
Application and Advantage:
The C300 supports the fiber to the curb (FTTC) network application, connected to the ONU that is deployed at the curb through the PON port, or connected to the DSLAM that is deployed at the curb through the GE optical port.
· Centric Management for GE Remote Extended Subracks Networking
· Leased Line Service (Enterprise Access)
· Leased Line Service (Base Station Access)
· Copper Access Network Application
The C300 supports multiple copper access modes such as ADSL2+, VDSL2, and SHDSL.
· Voice Service Network Application
The C300 supports the voice service network application. The C300 can function as an AG (Access Gateway) in the softswitch network
to provide the voice service and transmit the voice service to the IMS network. In addition, C300 supports the TDM SHDSL access,
which is applicable to reconstruction of the traditional voice network.
Specification
| Parameter | ZXA10 C300 |
| Capacity and Performance | Backplane Capacity(bps) | 3.2T |
| Exchange Capacity(bps) | 800G |
| MAC address capacity | MAX512K |
| Main control exchange board | 2(main and spare) |
| Service board | 14 |
| EPON capacity | single board:8*PON;single chassis:112*PON |
| typical configuration:224*PON/chassis |
| Uplink interface | GE | Single board: 4*GE(4 optical); |
| 4*GE(4 electric); |
| 2*GE(optical)+2*10M/100M/1000M(electric); |
| Chassis:8*GE,MAX 136*GE |
| 10GE | Per board:4*10GE(optical); |
| Chassis:8*10GE |
| User interface | PTP | Per board:16*FE or GE |
| Chassis:16 services slots,256*FE or GE |
| TDM interface | E1/T1 | Per card:32*E1/T1; |
| Chassis:16 service slots,512*E1/T1 |
| STM-1/STM-4 | Per board:2*STM-1or 1*STM-4; |
| Chassis:16 service slots,32*STM-1 or 16*STM-4 |
| BITS interface | BITS | 2input/1output or 1input/2output |
| Power | | 2lineDC(-48V) |
| | DC:-38V~-57V |
| Electrical Properties | Dimension(mm) | 19inch chassis 482.6*443.7*270mm |
| 10U(9U insert box+1U fan) |
| Weight | 36.6kg(full) |
| Heat | Fan |
| Install | Rack |
Order Guide
(1)AC or Dc power
(2)1.25G uplink or 10G
(3)with what board
Service boards
8 ports 1G GPON board:GTGO
8 ports 1G EPON board:ETGO
16 ports 1G GPON board:GTGH
16 ports 1G EPON board:ETGH
8 ports 10G GPON board:GTTO/ GTXO
8 ports 10G EPON board:ETTO

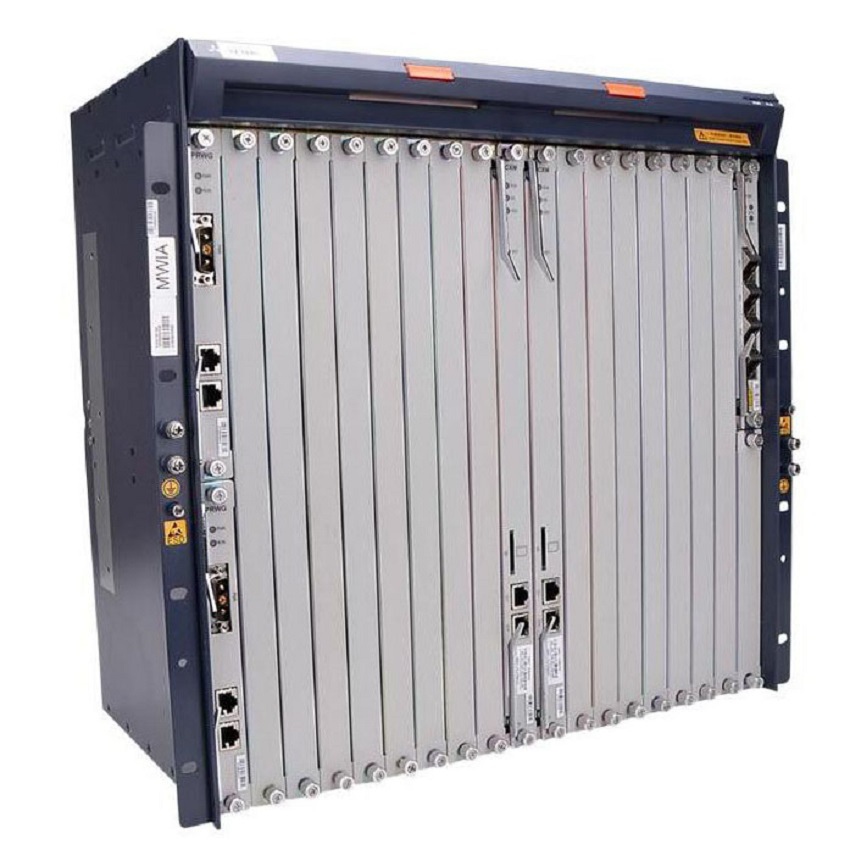

Details Images
