EchoLife HG8245Q2 FTTH Huawei GPON ONU 4GE 2POTS 1USB 2.4G 5G Optical Network Unit

Name: EchoLife HG8245Q2 FTTH Huawei GPON ONU 4GE 2POTS 1USB 24G 5G Optical Network Unit
Brand: huawei
Price: 1 USD

China EchoLife HG8245Q2 FTTH Huawei GPON ONU 4GE 2POTS 1USB 2.4G 5G Optical Network Unit wholesale

Brand Name : huawei

Model Number : hg8245q2

Certification : CE ROHS Anatel

Place of Origin : China

MOQ : 50pcs

Price : Negociatable

Payment Terms : T/T,Western Union

Supply Ability : 10000pcs/Week

Delivery Time : 7-15days

Packaging Details : Carton Box

Ports : Dual Band Wifi + 4GE+2TEL+USB+

No. of Fiber : 4 ports

Use : FTTh TO HOME

WLAN(2.4G) : 802.11 b/g/n(2.4G)

WLAN(5G) : 802.11 a/n/ac(5G)

Air Interface Rate : 300Mbit/s(2.4G) 1300Mbits/s(5G)

Type : GPON Wi-Fi ONT

Port : shenzhen/guangzhou/hongkong

Contact Now

New Original HG8245Q2 FTTH ONT AC Dual Band, 1x GPON, 4x RJ45 1000Mb/s, 1x RJ11, 2x USB

The EchoLife HG8245Q2 is a routing-type ONT in the Huawei all-optical access solution. It uses the GPON technology to implement ultra-broadband access for users.
It provides 4 GE+1 POTS+2 USB+2 WiFi(4 GE ports, 1 POTS ports, 2 USB port, 1 2.4G WiFi port and 1 5G WiFi port). The high forwarding performance ensures the user experience of voice, data and HD video services, and provides customers with an ideal all-optical access solution and future-oriented service support capability.
From here,you can find the Huawei EchoLife HG8245Q2 user manuals and user guides, including the product description, configuration guide, and troubleshooting guide.

Send us inquiry you can get the best price and coupon!

SPECIFICATION

Technical specification HG8245Q2
Interfaces
GPON	Class B+
	Sensitive reception: 27 dBm
	Wavelength: US 1310 nm, DS 1490 nm
	WBF
	Flexible mapping between the GEM and TCONT ports
Ethernet port	4 ports 10/100/1000 BASE-T (RJ45)
POTS Port	Maximum REN: 4
	G.711A/μ, G.729a/b and G.722
	Encoding/decoding
	T.30/T.38/G.711 fax mode
	DTMF
USB port	2 USB 2.0 ports
USB port	Possibility to create a network drive based on FTP
WLAN	IEEE 802.11 b/g/n (2.4G)
	IEEE 802.11 a/n/ac (5G)
	3 × 3 MIMO
	Antennas with 2 dBi gain
	WMM
	Multiple SSIDs
	WPS
	450 Mbit/s (2.4 G);
	1300 Mbit/s (5 G)
Physical characteristics
Dimensions	265 mm x 176 mm x 82 mm
Weight	1500 g
Permissible operating temperature	0°C to 40°C
Permissible air humidity	5%-95% RH, non-condensing
Power input	100-240 V AC, 50/60 Hz
System power supply	11-14 V DC, 2 A
Static power consumption	8 W
Maximum power consumption	20.5 W
LEDs	POWER/PON/LOS/TEL/LAN/WLAN/WPS/USB
Functionality
Intelligent connection	Intelligent Wi-Fi coverage
	Automatic negotiation SIP/ H.248
	All port services
	Parental control
	L2 / L3 transmission (IPv4): 1G uplink, 2G downlink
Intelligent handling	Intelligent Wi-Fi sharing
	Authentication of portal 802.1x
	Sharing based on SoftGRE
	Linking one account to two POTS ports

EchoLife HG8245Q2 FTTH Huawei GPON ONU 4GE 2POTS 1USB 2.4G 5G Optical Network Unit

About Us :

Hongking Industrail co.,limited
HongKing Communication Technology (shenzhen)co.,Limited
are a company group which specialized in the research and development of optical access network technology. We provide integrated network transmission products such as voice, data, and video based on IP networks. As a partner of HUAWEI & ZTE ,We have great advantage on the region of PON and FTTH, We can Provide Competitive fiber optic access solution for ISP Company and Telecommunication company worldwide..
Our Competitive Products Includes:
GPON EPON XPON ONU ONT (Optical network terminal)
OLT & Board & SFP & OLT Accessories (Optical Line Terminal)
FTTH Accessories (fiber to the home)
Our Services
1. Provide Technical support and Remote help for our customers
2. 1-3 year warranty for our product
3. OEM/ ODM service for your market
In the past 10years, we had provided our FTTH products and good service for more than 30 countries with good reputation
Welcome to contact us to get a good supplier and partner !

Factory Overview :

Product Tags:

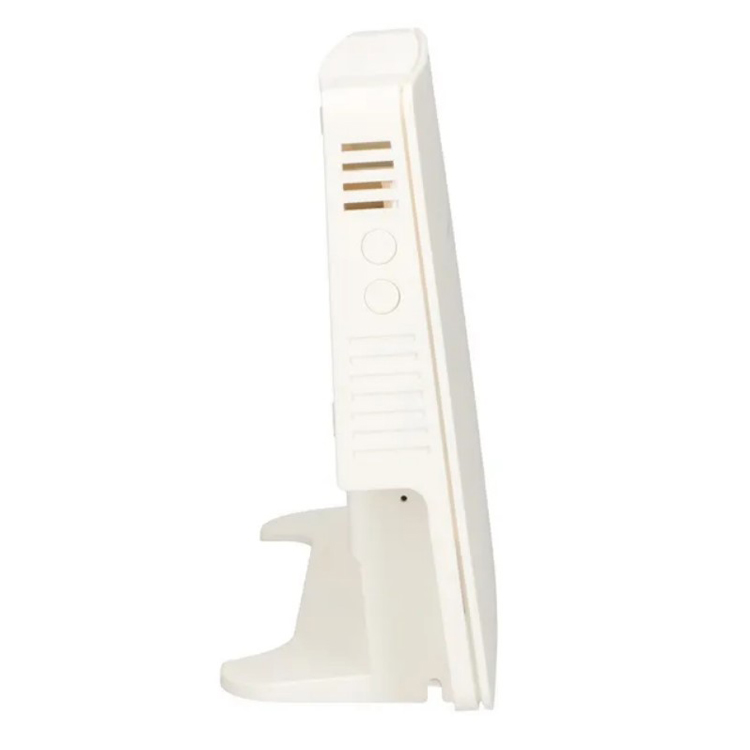

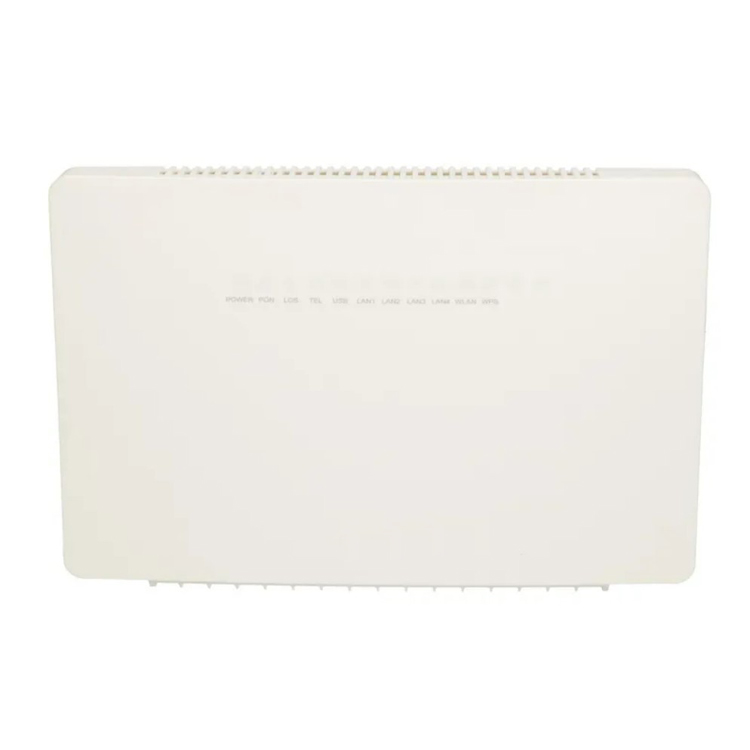

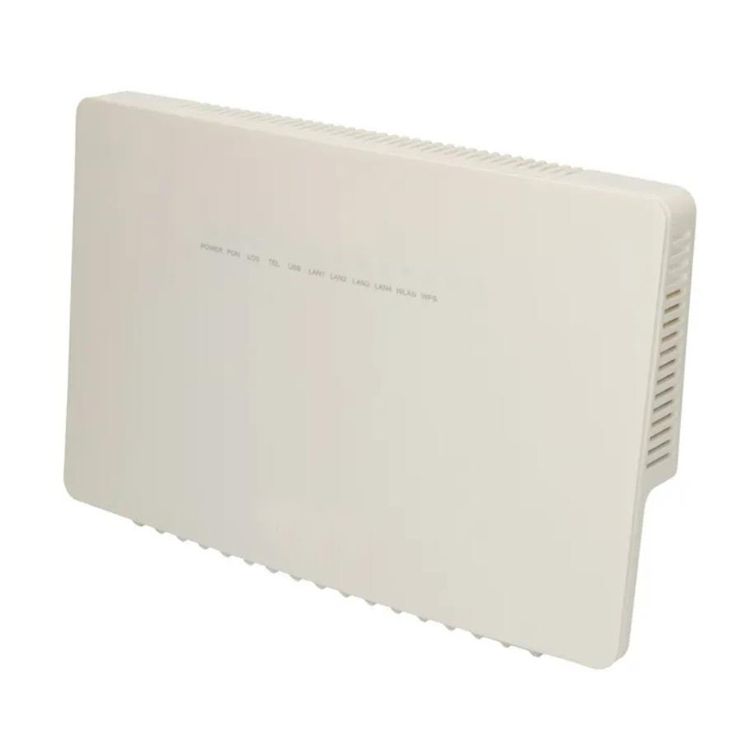

EchoLife HG8245Q2 FTTH Huawei GPON ONU 4GE 2POTS 1USB 2.4G 5G Optical Network Unit Images
